16.0m

Working Height

272kg

Platform Capacity

7,829kg

Weight

460SJ

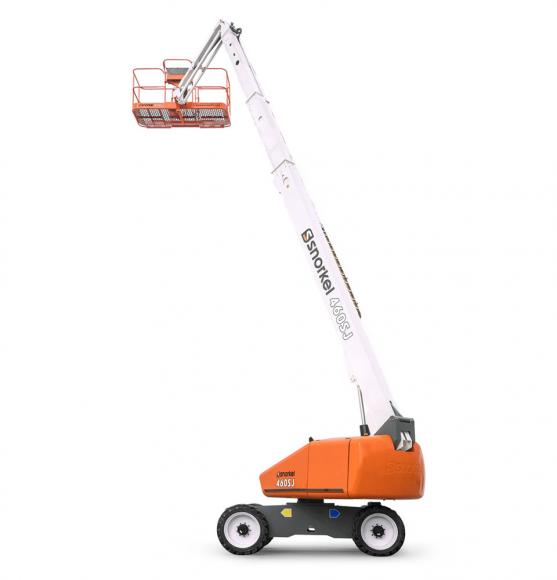

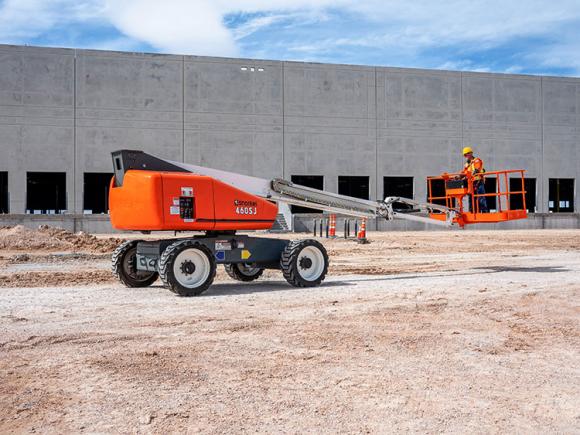

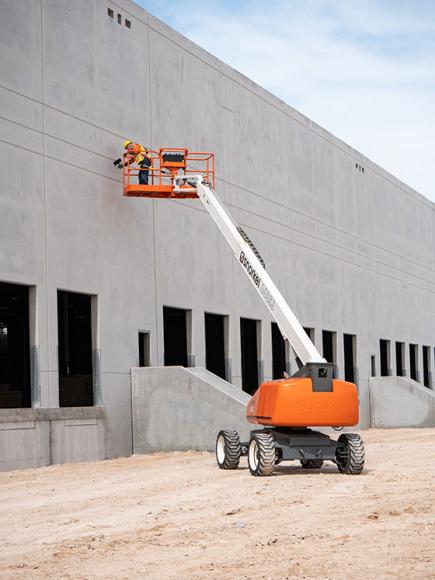

The new Snorkel 460SJ is a diesel mid-size telescopic boom lift, which features powerful constant four wheel drive and a fixed axle for excellent rough terrain performance. Equipped with Snorkel’s new removeable tri-entry platform designed for fast replacement, and a 2.0m jib boom, this all-steel lift features Snorkel Guard™ secondary guarding system as standard. Ideal for construction and industrial applications.

Max Working Height
16.0m
Max Platform Height
14.0m
Max Working Outreach
12.3m
Platform Size
2.44m x 0.91m
Overall Width
2.31m
Transport width
2.08m
Overall Length
8.6m
Transport Length
6.81m
Stowed Height
2.38m
Transport Height
2.92m
Ground Clearance
320mm

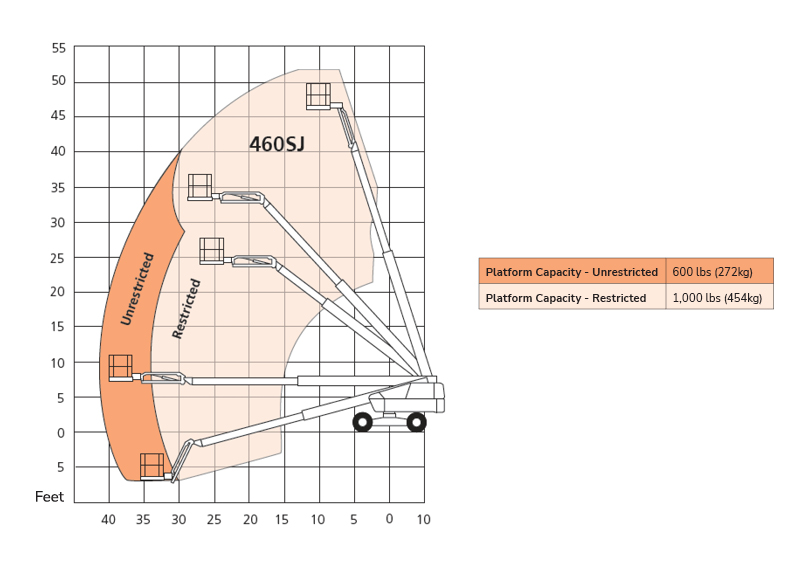

Platform Capacity – Unrestricted
272kg
Platform Capacity – Restricted
454kg
Max Drive Height
14.0m
Max Wind Speed
12.5m/s
Max Drive Speed (Stowed)
6.8km/h
Max Drive Speed (Elevated)
1.0km/h
Jib Length
1.67m
Jib Arc
135º (+70º/-65º)
Platform Rotation
150º
Turret Rotation
360° continuous
Tailswing
0.9m
Raise/Lower Time
64/64 seconds
Gradeability
50%
Inside Turning Radius
3.0m
Outside Turning Radius
5.06m
Tyres
355/55 D625 foam filled lug
Controls
Proportional drive, raise, slew, extend, jib & platform rotate
Drive System
4 wheel drive
Power Source
Kubota 18.6kW (24.9hp) diesel – Stage V
Auxiliary Power Unit
12V DC
Weight
7,829kg
  • Snorkel Guard™ secondary guarding system
  • 5ft 6in 135º jib
  • Oscillating axle
  • Hydraulic platform rotation
  • Hydraulic oil cooler
  • Four wheel drive
  • All proportional controls
  • Swing-out engine tray
  • Hour meter & on-board diagnostics display
  • Power line to platform
  • Tilt alarm & cut-out
  • DC emergency operation
  • Tri-entry platform
  • Flashing amber light
  • Platform overload system
  • 2 year parts & labor, 5 year structural warranty
7.5kW generator package
AC generator 110V/240V 2kW
Air-filled flotation tyres
Aircraft Package
Airline to platform
Cold Weather Package
Deluxe Aircraft Package
Dual fuel
Environmental hydraulic oil
Extreme Cold Weather Package
Extreme Environment Package
Glazier Package
Light package
Non-marking tyres
Pipe Rack
Snorkel OnSite™ Telematics
Special paint colours
Tool tray
Tow Kit
