A38E | snorkellifts.co.uk

13.5m

Working Height

215kg

Platform Capacity

3,880kg

Weight

A38E

The class-leading Snorkel A38E is a lightweight, durable and reliable electric articulated boom lift. Designed for internal and external use, this lift benefits from compact dimensions and an articulating/telescopic boom configuration for maximum maneuverability and versatility.

Specifications

Max. working height

13.5m

Max. platform height

11.5m

Max. working outreach

6.1m

Clearance height at max outreach

5.4m

Platform size

0.69m x 1.11m

Overall width

1.5m

Overall length

4.1m

Stowed height

2.0m

Ground clearance

120mm

Platform capacity (SWL)

215kg

Max. drive height

11.5m

Max. wind speed

12.5m/s

Max. drive speed (stowed)

4.0m/h

Max. drive speed (elevated) forward

0.5 km/h

Max. drive speed (elevated) reverse

0.4 km/h

Platform rotation

90º (+45º/-45º)

Turret rotation

360º non-continuous

Tailswing (elevated)

0m

Tailswing (stowed)

1.4m

Raise / lower time

83 / 68 sec

Gradeability

36%

Inside turning radius

1.12m

Outside turning radius

2.4m

Tyres

22 x 9 16 non-marking rubber

Controls

Proportional

Drive system

Direct drive DC

Power source

8 x 6V, 220Ah batteries

Battery charger

100-200V/15A

Weight

3,880kg

Standard Features

Snorkel Guard™ secondary guarding system
Proportional one-handed controls
Hydraulic platform rotation
Minimal front boom overhang
Ultra-tight inside turning radius
Power line to platform
Tilt alarm and cut-out
2 person indoor
1 person outdoor
Direct DC drive series wired wheel motors
Non-marking tyres
Duplicate boom controls at ground level
Hour meter & on-board diagnostics display
Flashing amber light
2 year parts & labour, 5 year structural warranty
CE approved

Options

Environmental hydraulic oil

Snorkel OnSite™ Telematics

Special paint colours

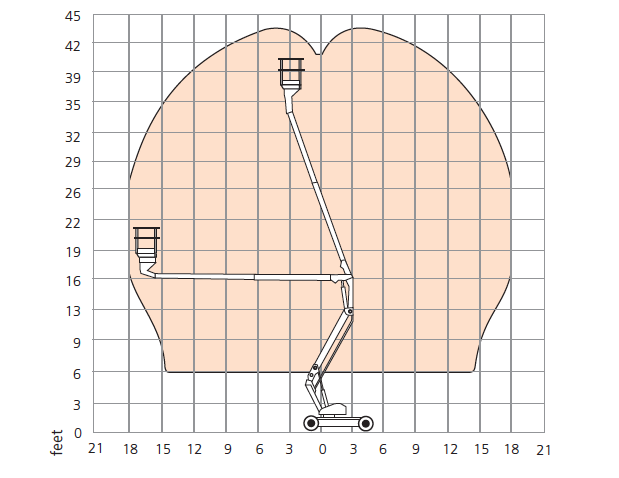

Working Envelope

Downloads

Specifications (PDF)

中文 Deutsch English Français 日本語 Español

Snorkel Guard^TM Brochure (PDF)

Lifting Capacities ENGLISH Metric

Dual Capacity Comparison Flyer

English Español

Product Range Multifold

English Français Español

Specification Sheet (Imperial)

English Français Español

Emergency Descent Procedure

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.

VIDEO

Español

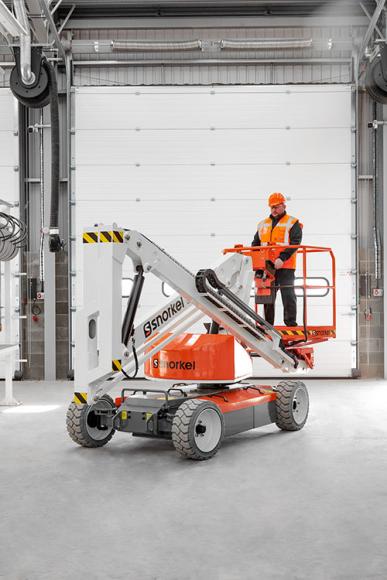

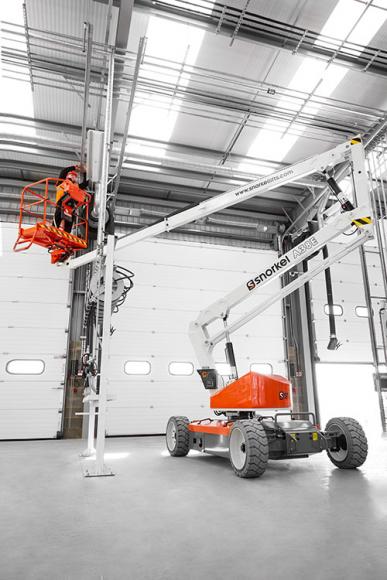

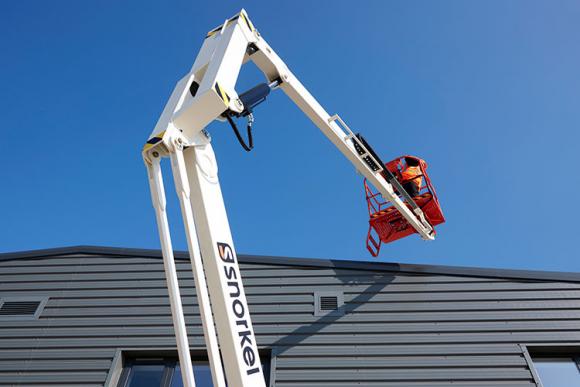

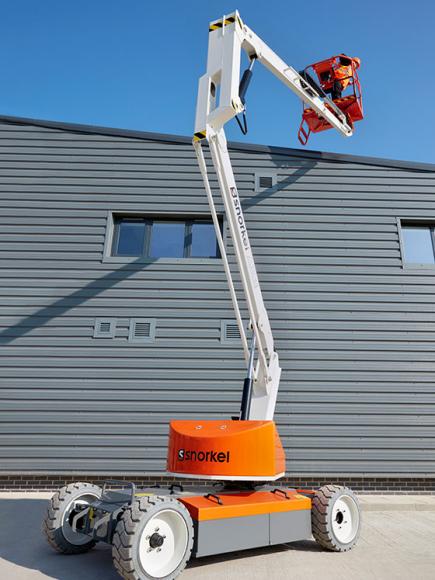

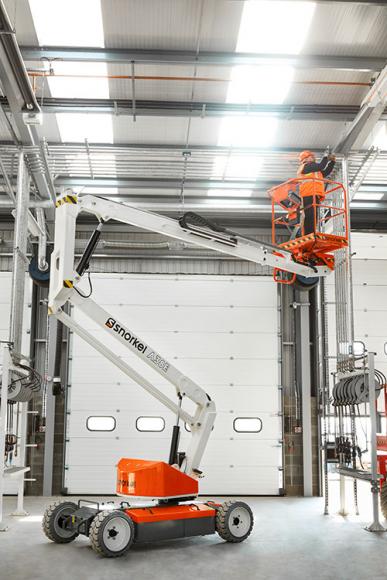

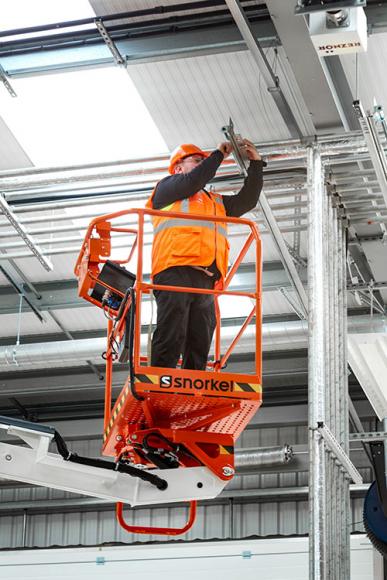

PHOTO GALLERY
