10.1m

Working Height

300kg

Platform Capacity

3,100kg

Weight

S2755BE

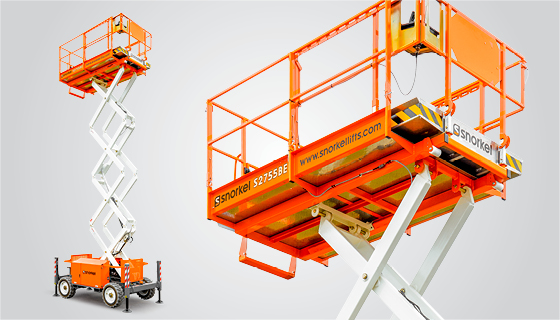

The Snorkel S2755BE narrow rough terrain scissor lift adds bi-energy power to four wheel drive performance. Switching from diesel-powered outdoor work to battery-powered, zero emission indoor work is made easy, and the lightweight design can be towed on a car trailer.

Max Working Height
10.1m
Max Platform Height
8.1m
Platform Size (stowed)
1.4m x 2.73m
Platform Size (extended)
1.4m x 3.93m
Deck Extension
1.2m
Overall Width
1.45m
Overall Length
3.3m
Stowed Height
2.5m
Min Height (guardrails folded)
2.13m
Ground Clearance
260mm
Platform Capacity (SWL)
300kg
Max Drive Height
7.7m
Max Wind Speed
12.5m/s
Max Drive Speed (stowed)
5.2km/h
Max Drive Speed (elevated)
0.5km/h
Raise/Lower Time
26/30 seconds
Gradeability
35%
Max Outrigger Leveling (front to rear)
6º
Max Outrigger Leveling (side to side)
10º

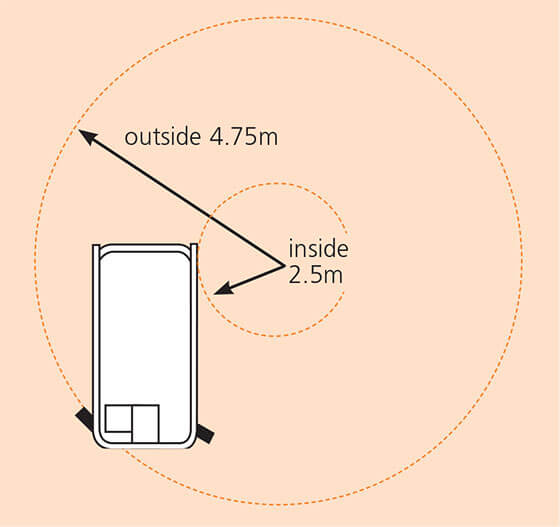

Inside Turning Radius
2.5m
Outside Turning Radius
4.75m
Exit/entry angle
20°
Tyres
0.58m x 0.22m – 12 non-marking
Controls
proportional joystick
Drive System
4 wheel drive
Power Source
Kubota diesel engine & 24V DC batteries
Weight
3,100kg
  • DC & diesel power for indoor and outdoor work
  • 4 wheel drive
  • 4 hydraulic stabilizers with automatic leveling
  • Roll out deck extension
  • Non-marking foam filled tires
  • Proportional controls
  • Power line to platform
  • Drive motion alarm
  • Descent alarm
  • Manual lowering valve
  • Flashing amber light
  • Dual lanyard attachment points
  • Oscillating axle
  • Hour meter
  • 2 years parts & labor, 5 year structural warranty
Cold Weather Package
Environmental hydraulic oil
Nylon spreader pads (set of 4)
Snorkel OnSite™ Telematics
Special paint colours

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Dual Capacity Comparison Flyer

English Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

English

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.
