Lift Height

Lift Capacity

Max. Load Capacity (14 in. load center)

Lift Height (Forks Up)

5.0m

Working Height

215kg

Platform Capacity

Stowed Height

542kg

Weight

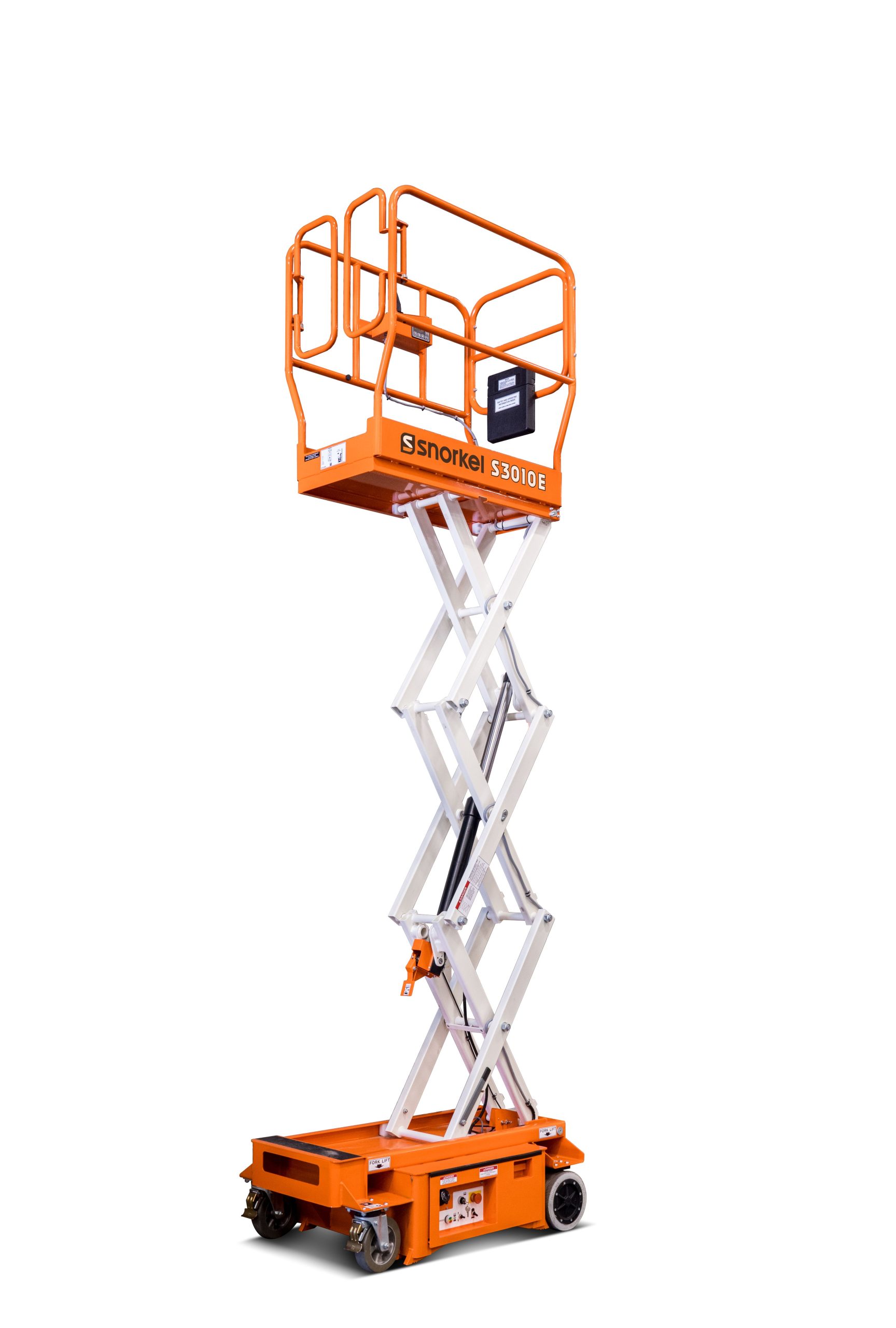

S3010E

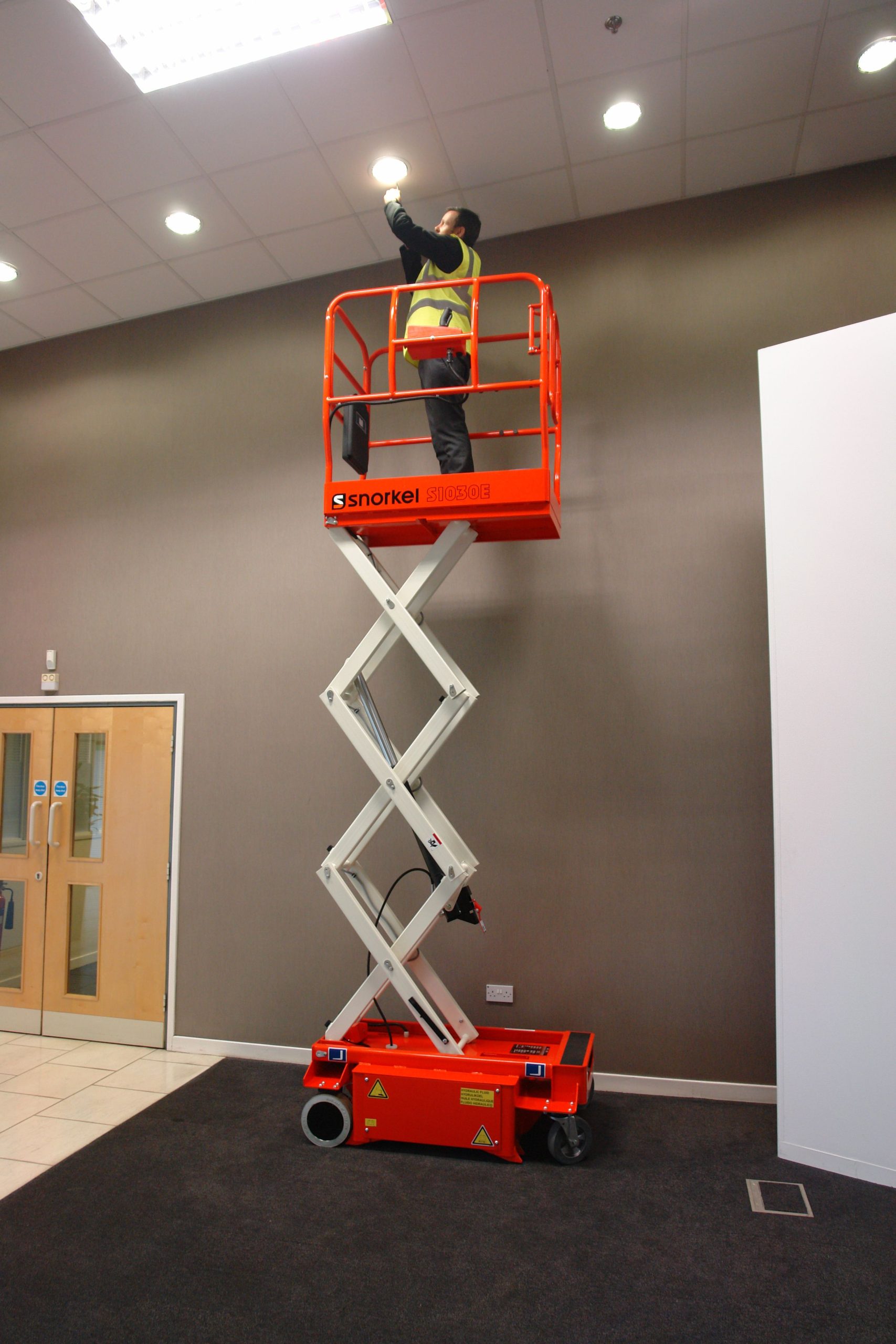

Ideal for low-level interior maintenance and construction duties, the Snorkel S3010E is a versatile yet compact 5.0m self-propelled mini scissor lift. Simple to operate, the S3010E is equipped with skid-steer and boasts a zero inside turning radius – perfect for working in confined spaces and narrow aisles.

Specifications

Max Working Height

5.0m

Max Platform Height

3.06m

Platform Size

1.09m x 0.53m

Overall Width

0.77m

Overall Length

1.26m

Stowed Height

1.82m

Ground Clearance

0.06m

Platform Capacity (SWL)

215kg

Max Drive Height

3.06m

Max Wind Speed

0m/s

Max Drive Speed (stowed)

2.8 km/h

Max Drive Speed (elevated)

0.58 km/h

Raise/Lower Time

18/25 seconds

Gradeability

25%

Max Operating Slope

2º

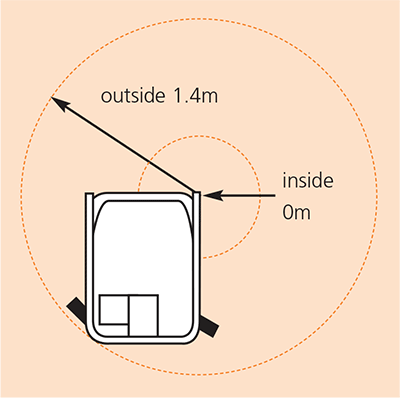

Inside Turning Radius

0m

Outside Turning Radius

1.4m

Tyres

230mm dia. non-marking rubber

Parking Brake

2-wheel automatic

Controls

2-axis proportional controls

Drive System

DC direct drive

Power Source

(2) 12V 105Ah AGM batteries

Battery Charger

100-240V 50/60Hz Auto, 30 amp

Weight

542kg

Standard Features

Highly-maneuverable skid steer
Zero inside turning radius
Saloon-door-style entry gates
Drives at full height
1 person + equipment capacity indoor
Non-marking tyres
Proportional point & go joystick controls
Integrated battery charger
Battery condition indicator
Crane points & through-the-chassis fork pockets
Selectable motion alarm
Tilt & descent alarm
Hour meter
Horn
2-year parts & labour, 5-year structural warranty
CE approved

Options

Environmental hydraulic oil

Special paint colours

Platform Height

Downloads

Dual Capacity Comparison Flyer

English Español

Specification (PDF)

中文 Deutsch English Français 日本語 Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Emergency Descent Procedure

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.
