REQUEST A QUOTE
10.0m

Working Height

680kg

Platform Capacity

3,500kg

Weight

SL26RTE

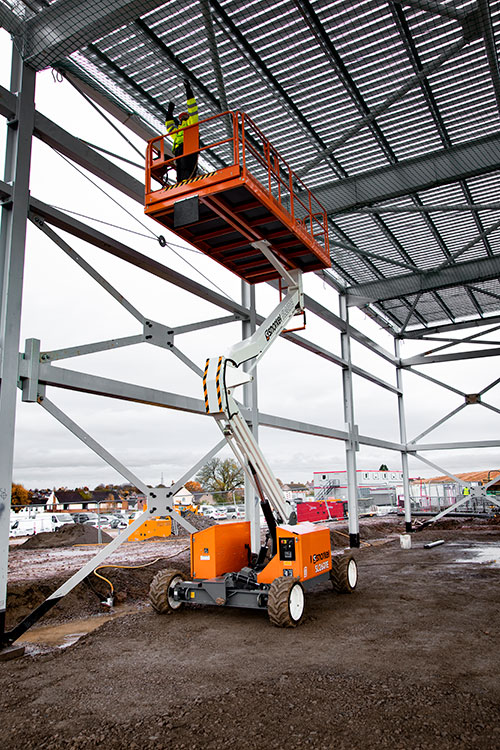

Long-lasting lithium batteries power the Snorkel SL26RTE all-electric Speed Level. Its quiet performance is balanced by automatic self-leveling capabilities, without outriggers. Equipped with a roll-out deck extension, the SL26RTE features a spacious platform, when extended.

Max Working Height
10.0m
Max Platform Height
8.0m
Platform Size (stowed)
1.72m x 3.66m
Platform Size (extended)
1.72m x 4.6m
Extension Deck Length
0.91m
Overall Width
2.13m
Overall Length
3.79m
Stowed Height
2.6m
Min Height (guardrails folded)
1.7m
Chassis Ground Clearance
305mm
Axle Ground Clearance
195mm
Platform Capacity (SWL)
680kg
Max Wind Speed
12.5m/s
Max Drive Height
8.0m
Max Drive Speed (stowed)
5.4 km/h
Max Drive Speed (elevated)
0.8 km/h
Raise/Lower Time
21/32 seconds
Gradeability
50%

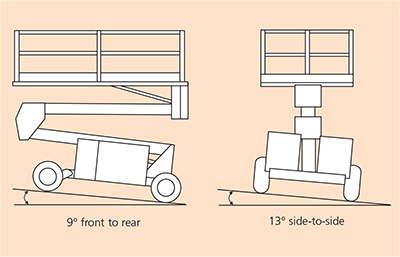

Max Outrigger Leveling (front to rear)
9º
Max Outrigger Leveling (side to side)
13º
Inside Turning Radius
3.9m
Outside Turning Radius
5.64m
Tyres
26 x 12.00 – 12 foam filled
Controls
digital proportional joystick
Drive System
4 wheel drive with hydraulic motors and flow dividers
Power Source
11.5kWh Li-ion batteries with integrated BMS
Operating temperature
(-)25°C to (+)60°C
Charger
high frequency smart on-board 50A battery charger
Motor
AC electric motor
Max working height
Max platform height
Platform size (extended)
Platform size (stowed)
Deck extension
Overall width
Overall length
Stowed height
Min. height (guardrails folded)
Ground clearance
Platform capacity (SWL)
Max drive height
Max wind speed
Max drive speed (stowed)
Max drive speed (elevated)
Raise / lower time
Gradeability
Max Outrigger Leveling (front to rear)
Max Outrigger Leveling (side to side)
Inside turning radius
Outside turning radius
Exit/entry angle
Min Height (guardrails folded)
Tyres
Controls
Drive system
Power source
Operating temperature
Charger
Motor
Weight
3,500kg
Last Updated
October, 2024
  • Two lithium-ion battery systems 11.5kWh
  • Automatic powered platform levelling
  • Powerful 4-wheel drive
  • Oscillating front axle
  • High grip, open tread deck (SL30RTE only)
  • Roll-out deck extension (SL26RTE only)
  • Descent alarm
  • High grip non-marking all terrain tyres
  • Digital proportional controls
  • Power line to platform
  • Fold-down guardrails
  • All motion alarm
  • Hour meter & on-board diagnostics display
  • Flashing amber light
  • 2000 charging cycles / 2 year* lithium battery warranty
  • 2 year parts & labour, 5 year structural warranty

*whichever comes first. Refer to Snorkel warranty policy for full details, limitations and restrictions. Batteries at the end of their life to be returned to Snorkel for recycling.

Additional 5.75kWh battery system
Aluminium platform floor (SL26RTE only)
Driving light package
Environmental hydraulic oil
Extra range tunnel package (RTE)
Extreme Environment Package
Snorkel OnSite™ Telematics
Special paint colours
Tunnel package (RTE)
Work light package
