SR1442 | snorkellifts.co.uk

13.5m

Working Height

4,200kg

Platform Capacity

11,150kg

Weight

SR1442

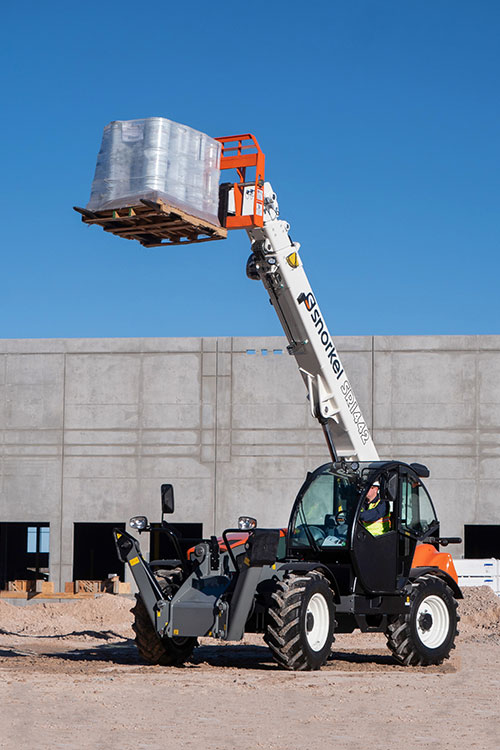

The Snorkel SR1442 rough terrain telehandler is reliably rugged. Equipped with a powerful Deutz Tier 4 Final diesel engine, this telehandler is designed to deliver sturdy performance on all terrain. It also features outriggers and frame sway as standard for maximum control.

Specifications

Max. lift capacity

4,200kg

Max. lift height

13.5m

Max. forward reach

9.5m

Overall Width

2.3m

Stowed Height

2.56m

Length to fork face

6.45m

Wheelbase

2.95m

Ground Clearance

350mm

Max. drive speed

30km/h

Raise/Lower Time

13 / 9.5 seconds

Frame levelling

11°

Hydraulic flow (per minute)

120L

Hydraulic pressure

230bar

Hydraulic oil capacity

150L

Fuel capacity

120L

Outside Turning Radius

4.2m

Tyres

405/70 – 24

Power Source

Deutz 55.4kW Stage V/Tier 4 Final diesel

Standard Features

Full-time 4-wheel drive
4-wheel steer – selectable front, crab & coordinated steering modes
Auxiliary hydraulic circuit on the boom
Variable speed hydrostatic drive
Fender (4)
Fully enclosed cab with heat
Proportional joystick controls
Adjustable suspension seat
Illuminated gauge & switch panels
Colour LCD display with machine & engine diagnostics
Flashing beacon
Fixed 1500mm carriage & 1500mm floating forks
2 year parts & labour, 5 year structural warranty
CE approved

Options

Additional rear mirror

Air conditioning

Bluetooth radio, handsfree & USB socket

Boom suspension & floating boom

Cab front glass protection grille

Engine preheater 220V

Fixed tow hook 6 ton

Front & rear LED work lights (4)

Grammer air suspension seat

Heated right external mirror

Snorkel OnSite™ Telematics

Special paint colours

Sun curtain

Work lights on boom (2)

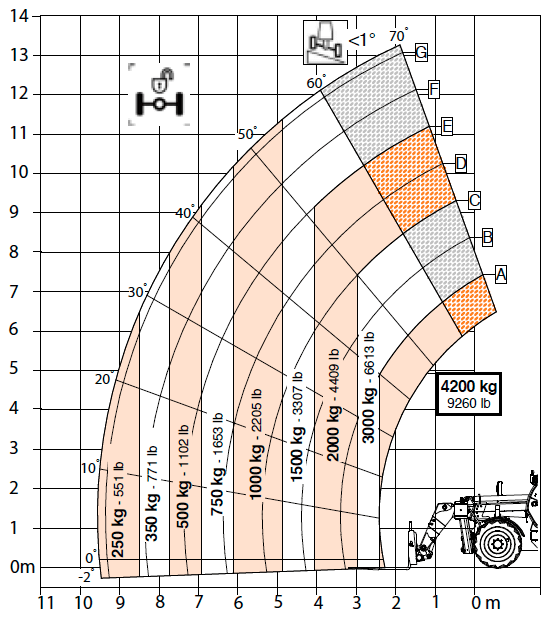

Load Chart

Downloads

Dual Capacity Comparison Flyer

English Español

Specifications (PDF)

中文 Deutsch English Français 日本語 Español

Specification Sheet (Imperial)

English Français Español

Product Range Multifold

English Français Español

Snorkel Guard^TM Brochure (PDF)

Emergency Descent Procedure

Warranty

All Snorkel machines are built to the highest standards and we carry out rigorous quality checks at every stage of production.

To ensure our customers have peace of mind in purchasing Snorkel products, all Snorkel machines come with a five-year structural warranty, plus a two-year warranty for parts and labour.

Snorkel UK provides nationwide coverage for any warranty or technical support required in the United Kingdom & Ireland. For more information, please contact us.
