11.7m

Working Height

136kg

Platform Capacity

435kg

Weight

UL32

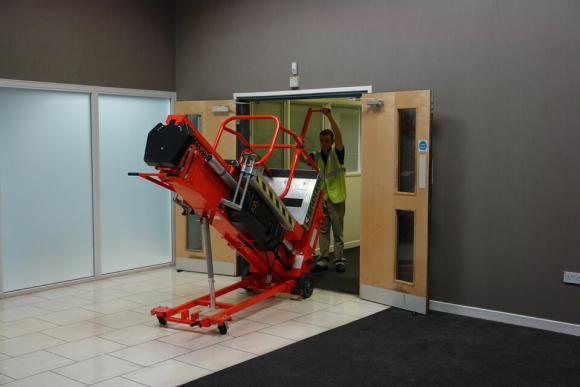

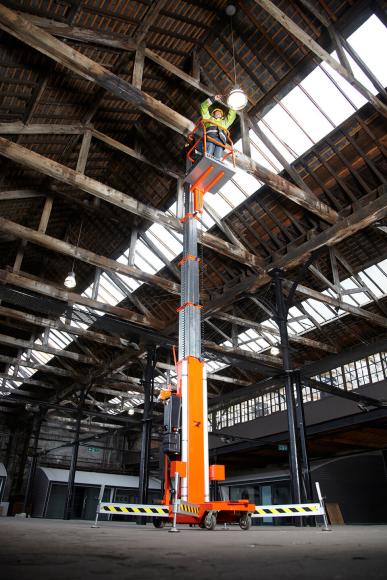

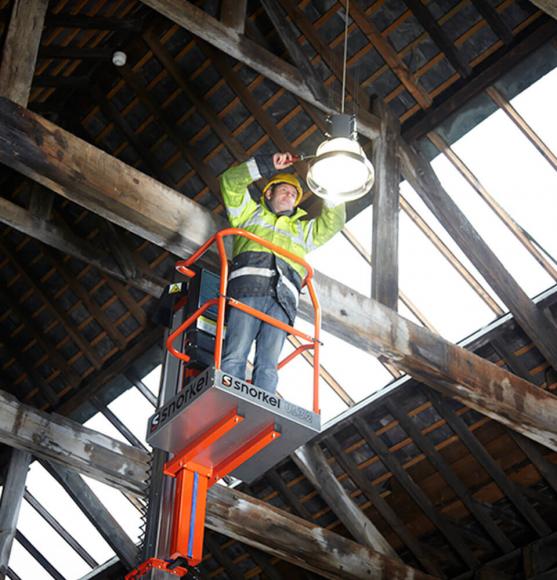

The Snorkel UL32 is a robust push-around mast lift, safely lifts one person plus tools to a working height of 11.7m. The lift can be easily pushed into position, and can pass through standard doorways thanks to its innovative tilt-back system. The patented ‘Girder Lock’ telescopic mast design provides a very stable platform, even at full elevation. The UL32 is ideal for interior maintenance, particularly in sports hall, auditoriums and atriums.

Max. Working Height
11.7m
Max. platform height (A)
9.7m
Platform Length
0.56m
Platform Width
0.66m
Outrigger footprint (B x C)
2.06m x 1.99m
Overall width (F)
0.74m
Overall length (D)
1.32m
Stowed height (E)
2.51m
Tilt back height (G)
1.95m
Tilt back length (H)
2.64m
Platform Capacity (SWL)
136kg
Max. Wind Speed
0m/s
Raise/Lower Time
57/26 seconds
Wheels
250mm x 64mm rear, 150mm casters front
Controls
push button
Wall Access
356mm
Power Source (AC)
120/220V AC 50HZ
Power Source (DC)
1 x 12V 105Ah battery
Weight (AC)
435kg
Battery charger (DC)
integrated
Weight (DC)
465kg
  • Patented Girder Lock telescopic mast system

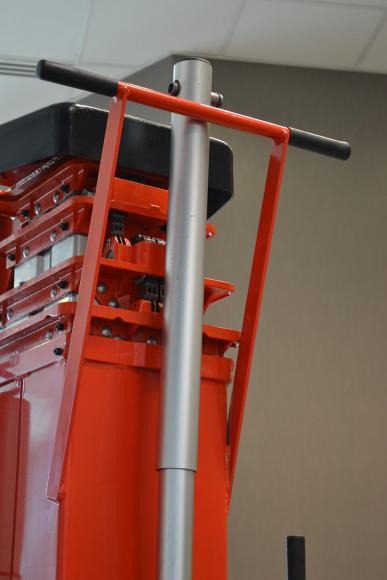

  • Integrated tilt-back system
  • Ground level entry
  • EZ loader system for transport

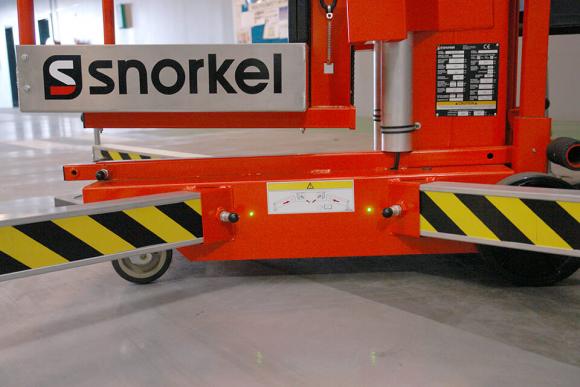

  • Outrigger interlock indicators
  • Integrated battery charger (DC only)
  • Non-marking wheels and casters
  • 2 year parts & labour, 5 year structural warranty
  • CE approved
Environmental hydraulic oil
Laser locator
Special paint colours
Tool tray
